What Are Die Varieties?



Mintmark Styles:

1941-S 5c MMS-002, Die 1 of 16

Home



 SF Mintmark Styles



1941-S MMS-002, Die16

1941-S MMS-002, Die 2

Photographs

Die Stage and Markers

Value and Population



Reported by: James Wiles

Comments: FS-501.  LISTED as RPM-001.  Same Obverse die as MMS-002, Die 16.
Photographs

Stage A Photos

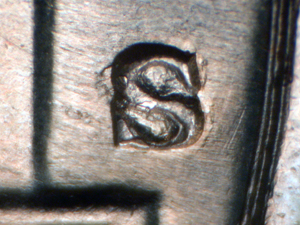

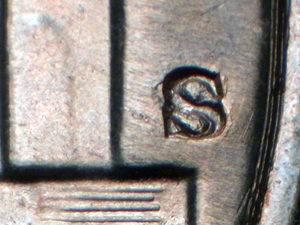

Wide Shot of RPM Close-up of RPM

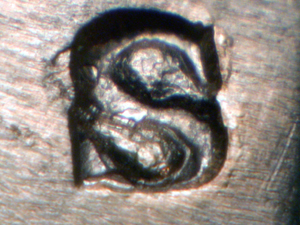

Magnified RPM

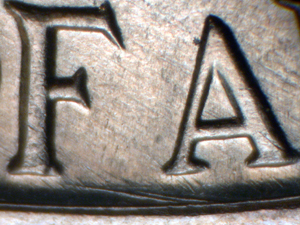

Die Gouge between F and A Die Gouge under CA of AMERICA

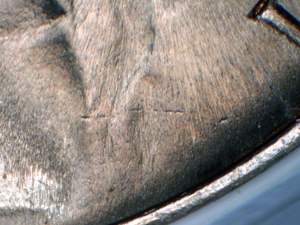

Die Gouges across Queue Die Gouges on Back of 9 of Date

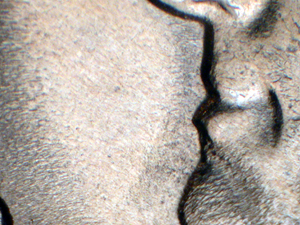

No Die Scratches in Front of Face

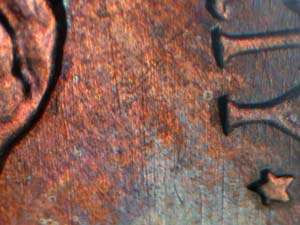

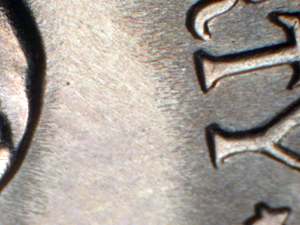

 		 No Die Scratches Behind Head
Stage B Photos

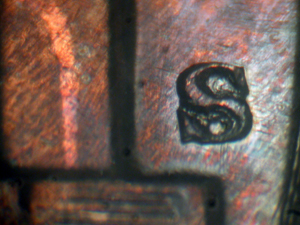

Wide Shot of RPM Close-up of RPM

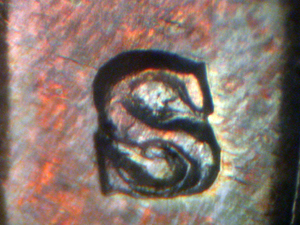

Magnified RPM
Die Gouge between F and A No Die Gouge under CA of AMERICA

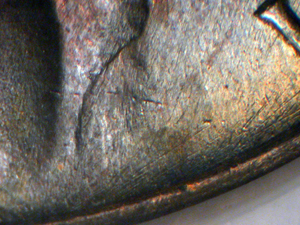

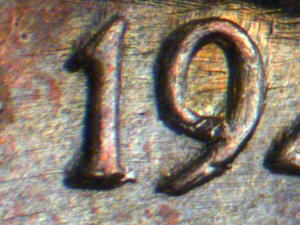

Die Gouges across Queue Die Gouges on Back of 9 of Date

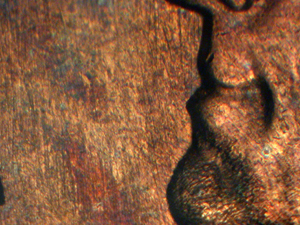

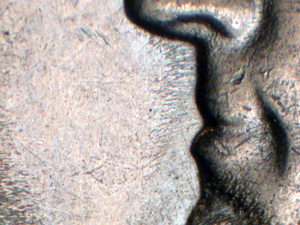

Die Scratches in Front of Face Die Scratches Behind Head

Stage C Photos

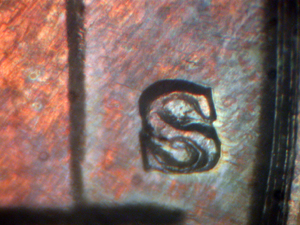

Wide Shot of RPM Close-up of RPM

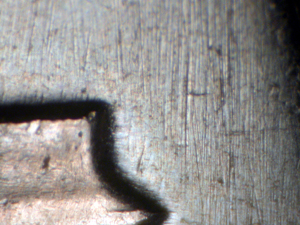

Magnified RPM Die Scratches North-South on Reverse

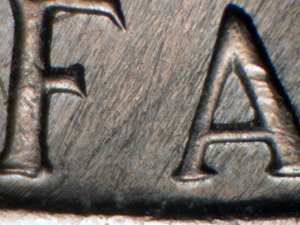

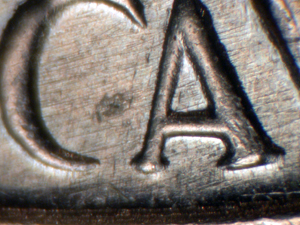

No Die Gouges between F and A No Die Gouge under CA of AMERICA

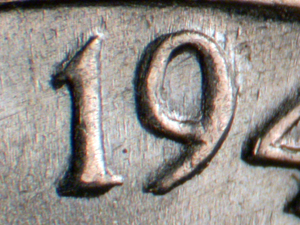

Die Gouges across Queue Die Gouges on Back of 9 of Date
No Die Scratches in Front of Face

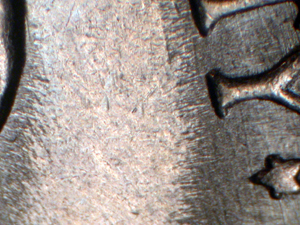

 		 No Die Scratches Behind Head
Top of Page


Die Stage and Markers Chart



Die Stages and Markers

UVC-008 DMR-003 Stage A: Medium secondary mintmark to the West – EDS
Die gouge under CA of AMERICA
Die gouge between OF and AMERICA
Arc of die gouges through lower queue – LDS
Die clash shows in queue
Die gouges through backside of 9 of date
    Stage B: Secondary mintmark has been abraded away – MDS
Die gouge under CA of AMERICA has been abraded away
Numerous die scratches North-South on Obverse – VLDS
    Stage C: Numerous die scratches North-South on Reverse – LDS
Obverse is VVLDS

Top of Page


Value and Population Guide



Value and Population

G

VG

F

VF

40

45

50

53

55

58

60

61

62

63

64

65

66

67

68

69

70
Value     5 10 20 25 30 35 40 60 90 100 125 150 200 250 350 1000

Raw
ANACS   1 5 8   4 3 2 1 5     3 3 18 40 10
NGC       2   1       2     2 2 9 9 11 2
PCGS                 1         1 17 28 8
Totals   1 5 10   5 3 2 2 7     5 6 44 77 29 2     198
